Thinking about upgrading to motorized shades? They add incredible convenience and a sleek, modern look to your home. But before you click “buy” on those seemingly perfect online options, you need to know the brutal physics that many sellers try to hide in the fine print. At VIDEMA, we believe in radical transparency. We’d rather help you avoid a measurement disaster than sell you something you’ll regret.

Here are the 3 critical truths about motorized shades that you must understand before finalizing your order.

1. The 2-Inch Rule for Flush Recessed Mounting

Most people crave that ultra-clean, “flush-mounted” look where the shade cassette(we call it valance) sits perfectly inside the window recess. It’s the pinnacle of minimalist architecture. However, the internal components of a motorized shade—specifically the motor and the rechargeable battery—require substantial depth to fit inside the valance.

The hard truth is: For either a Motorized Roller Shade or a Motorized Honeycomb Shade, your window frame depth must be greater than 2 inches to achieve a flush mount.

The 2-Inch Rule: If your window depth is less than 2 inches, the shade’s cassette will extend beyond the frame (right). For a completely flush, minimalist look (left), a minimum depth of 2 inches is required.

If your depth is less than 2 inches, the valance will protrude beyond your window frame. This will ruin the minimalist, built-in aesthetic of a recessed installation.

Our Expert Recommendation: If you have a shallow recess (< 2″), you have two choices:

1. Partial Recess: Accept that the valance will protrude.

2. Outside Mount: Install the shade on the wall above the window frame for a cleaner, although non-recessed, look. Not sure which to pick? [ Click here WhatsApp with Elliott for a direct consultation].

2. The Physics of the inevitable Side Light Gaps (and our 2mm Obsession)

This is the most common surprise for new motorized shade owners: There will always be light gaps on the sides of a Motorized Roller Shade. It is not a manufacturing defect; it is an engineered reality.

The width breakdown is as follows: Fabric Width < Roller Tube Width < Outer Valance Width

Because the end cap pin and the motor header must have a structural thickness to hold the tube, the fabric itself is always narrower than the cassette. The industry standard for an “acceptable” gap is often as large as 1 inch per side.

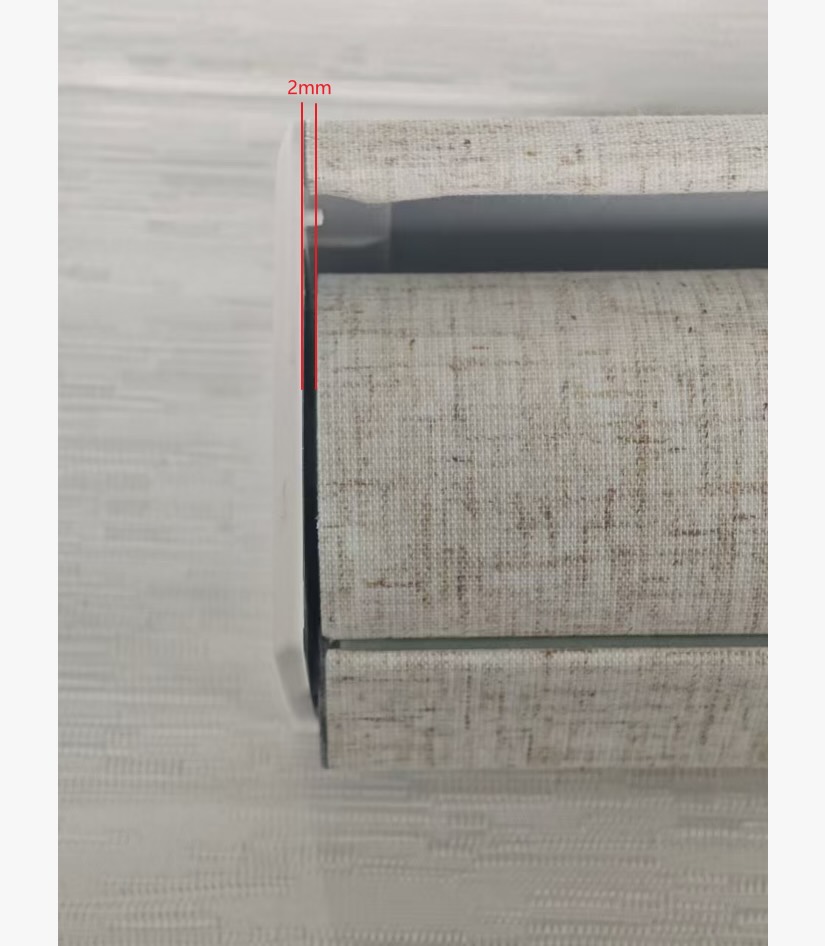

Precision You Can Measure: Our advanced engineering minimizes the inevitable side gap to just 2mm, providing better coverage and a cleaner look than standard industry alternatives.

Furthermore, the gaps are asymmetric. The motor end—which houses the charging port, control button, and structual pin—is always thicker than the idle end. While most factories give up and accept large gaps, we are obsessed with precision.

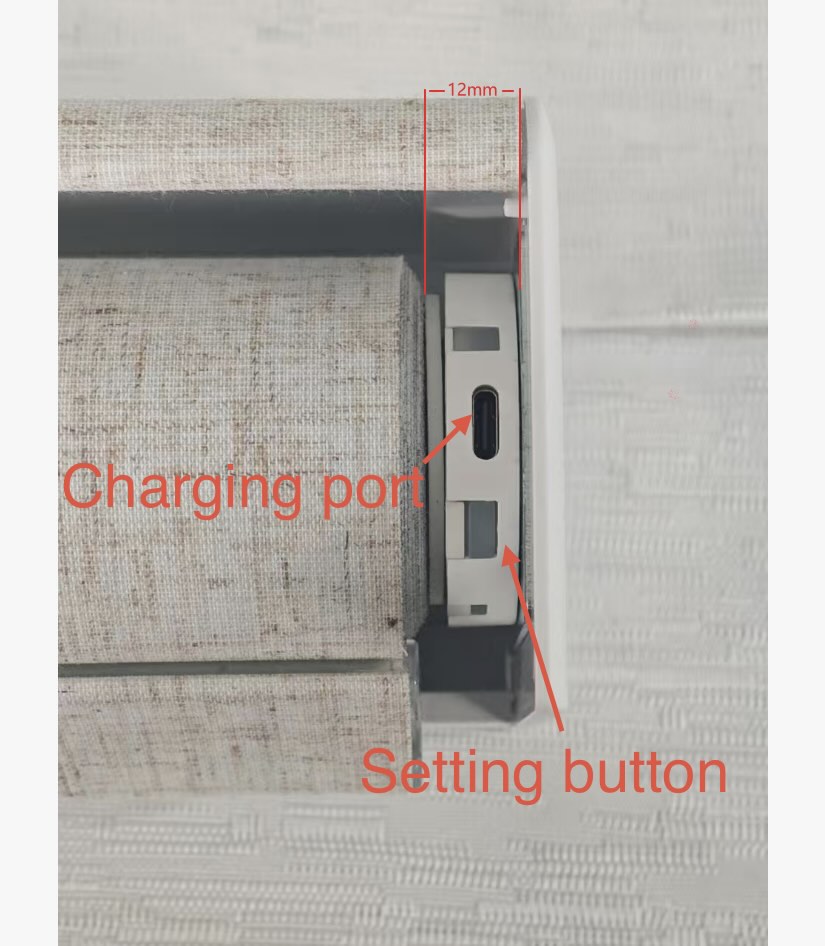

Craftsmanship in the Details: Through advanced engineering, we’ve minimized the motor-side gap to just 12mm—narrowing the light leak while keeping the charging port and setting button easily accessible.

Important Note: This asymmetric gap is unique to Roller Shades. Honeycomb (Cellular) Shades have a different internal mechanism where the fabric can be flush with the end caps. If you cannot tolerate any side light gaps, a Motorized Honeycomb Shade is your best alternative.

3. Why an Outside Mount Isn’t a “100% Blackout” Savior

Many bedroom owners think they can solve all light leakage problems by simply choosing an Outside Mount and making the shade wider than the window opening. While this does eliminate the internal recessed gaps, it introduces a new one.

The brutal truth: There is always a physical gap between the fabric roll and the wall. Light can, and will, reflect through this gap.

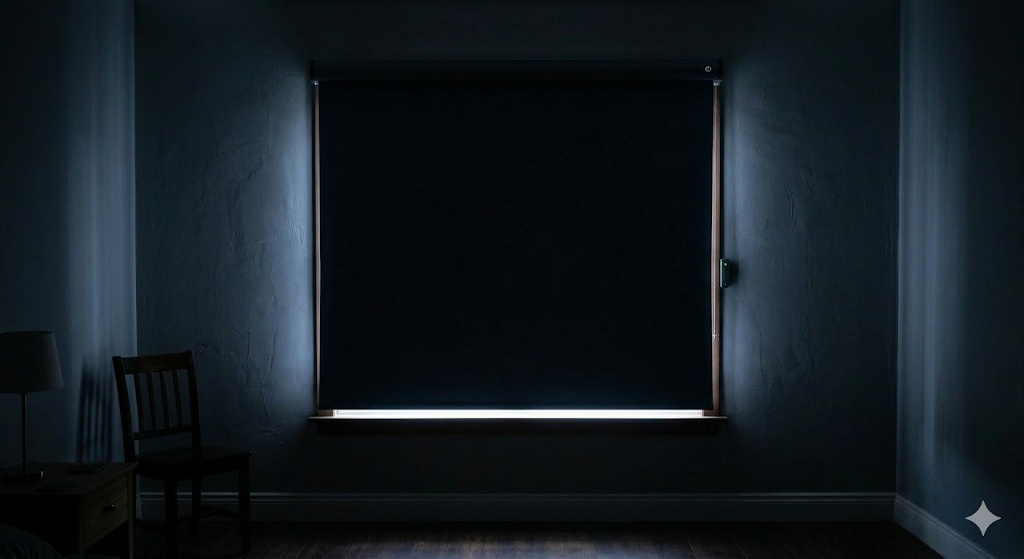

Even with an extra-wide outside-mount design, light still bypasses the edges because the fabric cannot sit perfectly flush against the wall surface.

For bedrooms or media rooms where extreme light sensitivity is an issue, a single layer of any type of shade is rarely enough. Our professional recommendation for 100% blackout is to layer your motorized shade with a secondary layer of Drapery (Curtains). This double layer is the only true way to eliminate all “light leaks” and achieve a blackout environment.

Still Confused? Talk to the Factory Owner.

Before you commit to an order that might not work, let Elliott see your window frame. A 5-minute WhatsApp consultation from the China production line is worth more than hours of reading generic size guides. [Click here Book Your WhatsApp Consult with Elliott]

Elliott Di Yang

Founder of VIDEMA & Technical Specialist

“I don’t just manufacture shades; I ensure they work perfectly in your home. If you ever run into a tricky installation issue, I’m the guy you’ll see on the other end of a FaceTime call.”

Don’t struggle alone—I’m here to help. Simply click the Phone, Email, or WhatsApp buttons on the bottom of the site to connect with me directly! Or just click the blue “Chat with US” button to live chat with us !
